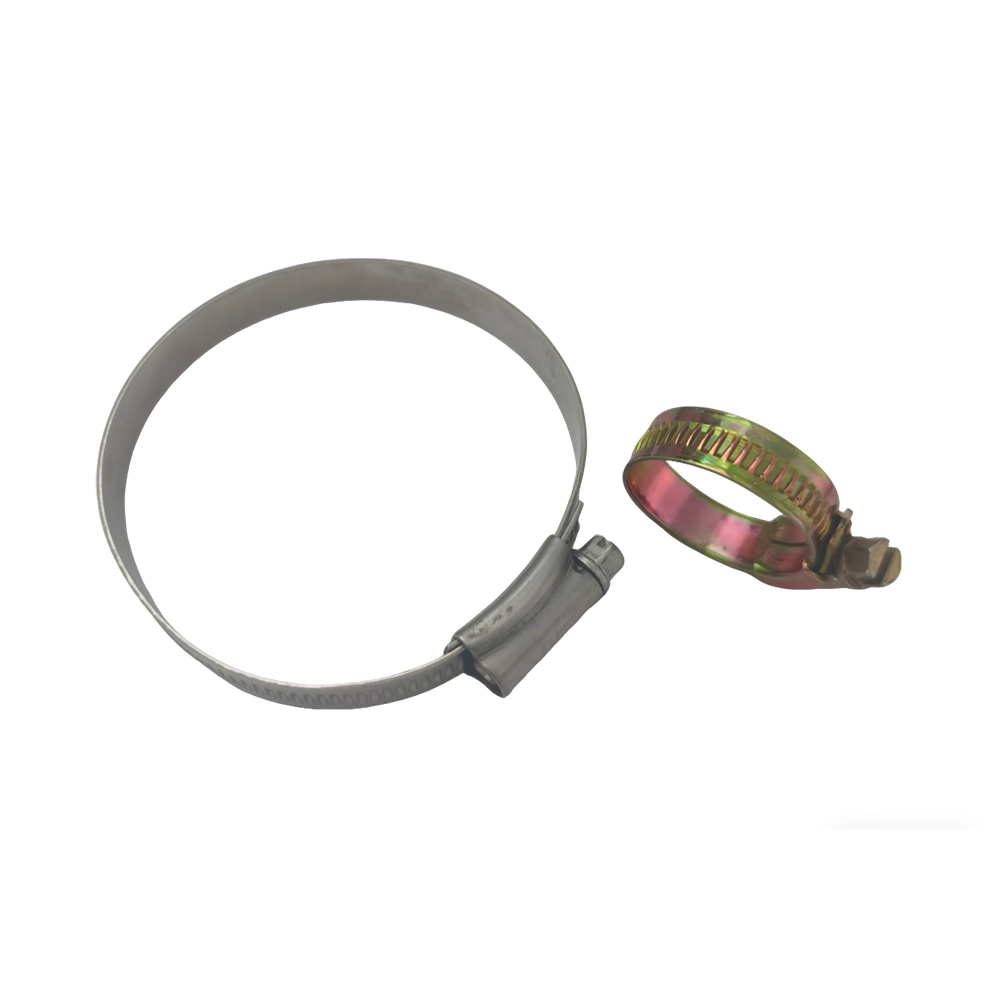

British Hose Clamp
This hose clamp is a device used to attach and seal a hose onto a fitting such as a barb or nipple.
Type: British Type Hose Clamp
Standard: BS-5315
Band Thickness: 0.8mm / 0.9mm
Band Width: 9.7mm / 11.7mm
Size: (10-16)mm ~ (300-320)mm
Material: W1: Band, housing and screw are zinc plated steel.
W4: Band, housing and screw are AISI 301SS/304SS.
Bolt & Nut: Carbon Steel, Stainless Steel
Surface: Zinc Coated, Yellow or Silver

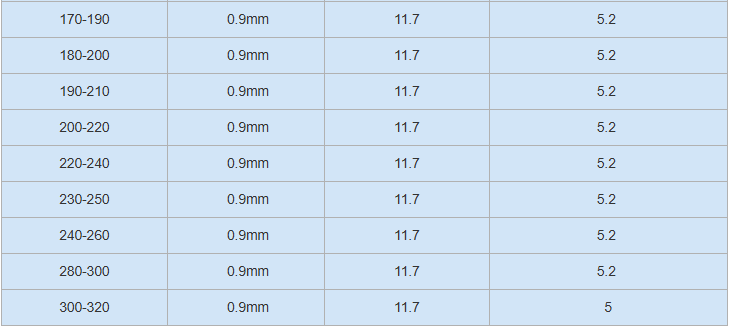

Standard Product Sheet for British Hose Clamp
| British-style hose clamp | Size/mm | Band width |
| 10-16 | 9.7mm | |
| 13-19 | 9.7mm | |
| 16-25 | 9.7mm | |
| 19-29 | 9.7mm | |
| 22-32 | 11.7mm | |
| 25-38 | 11.7mm | |
| 32-44 | 11.7mm | |
| 35-51 | 11.7mm | |
| 38-57 | 11.7mm | |
| 44-64 | 11.7mm | |
| 51-70 | 11.7mm | |
| 64-76 | 11.7mm | |
| 70-89 | 11.7mm | |
| 76-92 | 11.7mm | |
| 80-100 | 11.7mm | |
| 90-110 | 11.7mm | |
| 100-120 | 11.7mm |
