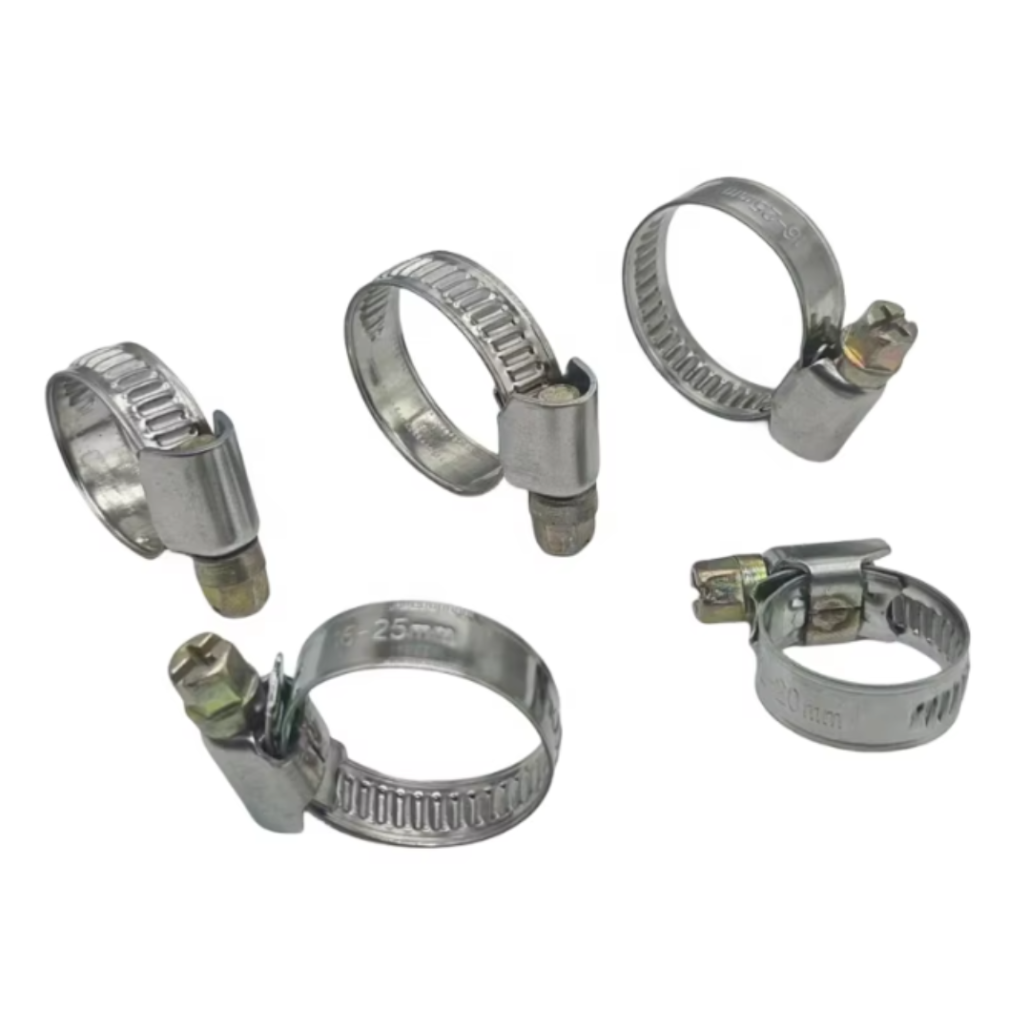

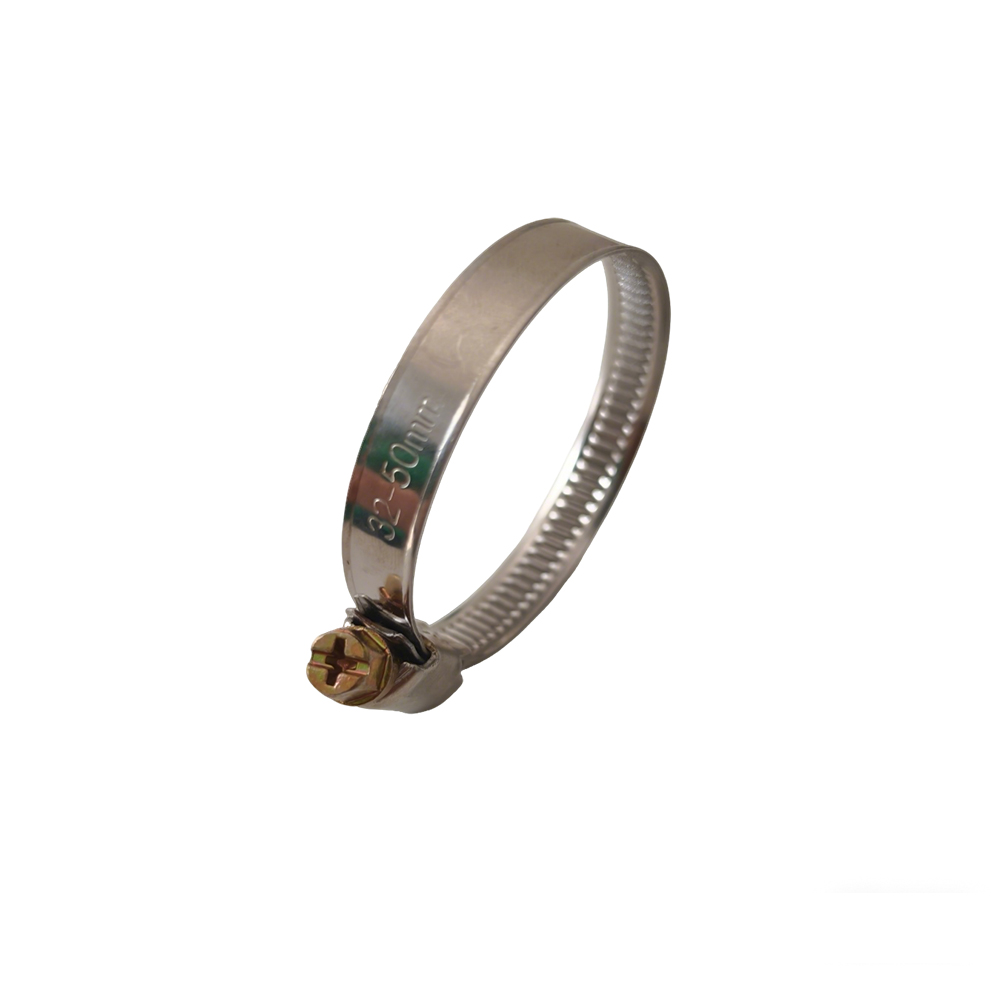

Germany Hose Clamp
This hose clamp is a device used to attach and seal a hose onto a fitting such as a barb or nipple.
Type: Germany Type Hose Clamp
Standard: DIN3017
Band Width: 9mm /12mm
Band Thickness: 0.6mm (0.024″)
Size: (8-12)mm ~ (200-220)mm
Material:
W1 – All parts carbon steel with zinc plated
W2 – Hosing and screw carbon steel,
band SS201/SS301/SS304/SS316
W4 – All parts stainless steel 201/301/304
W5 – All parts stainless steel SS316
Standard Product Sheet for German-Style Hose Clamp
| German-style hose clamp | Size/mm | Band width |
| 8-12 | 9m | |
| 10-16 | 9mm/12mm | |
| 12-20 | 9mm/12mm/14mm | |
| 16-25 | 9mm/12mm/14mm | |
| 20-32 | 9mm/12mm/14mm | |
| 25-40 | 9mm/12mm/14mm | |
| 32-50 | 9mm/12mm/14mm | |
| 40-60 | 9mm/12mm/14mm | |
| 50-70 | 9mm/12mm/14mm | |
| 60-80 | 9mm/12mm/14mm | |
| 70-90 | 9mm/12mm/14mm | |
| 80-100 | 9mm/12mm/14mm | |
| 90-110 | 9mm/12mm/14mm | |
| 100-120 | 9mm/12mm/14mm | |
| 110-130 | 9mm/12mm/14mm | |
| 120-140 | 9mm/12mm/14mm | |
| 130-150 | 9mm/12mm/14mm | |
| 140-160 | 9mm/12mm/14mm | |
| 150-170 | 9mm/12mm/14mm | |
| 160-180 | 9mm/12mm/14mm | |
| 170-190 | 9mm/12mm/14mm | |
| 180-200 | 9mm/12mm/14mm |
