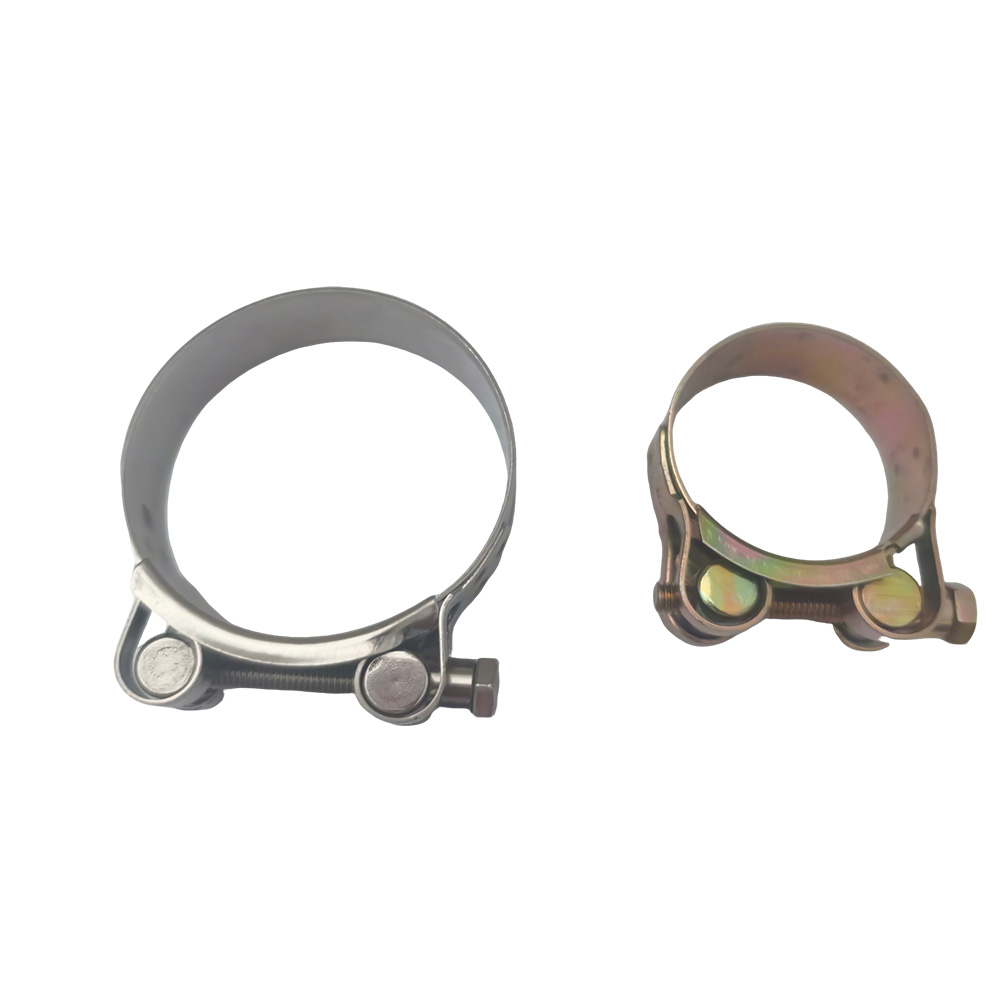

European-Style Single-Headed High-Strength Hose Clamp
This hose clamp is a device used to attach and seal a hose onto a fitting such as a barb or nipple.
Type: European Style Single Headed High Strength Hose Clamp
Band Thickness: 0.6mm – 1.5mm
Band Width: 18mm / 24mm
Size: (17-19)mm ~ (122-130)mm
Material:
W1: Band, housing and screw are zinc plated steel.
W2: Housing and screw are carbon steel; band is SS201 / SS301 / SS304 / SS316.
W4: Band, housing and screw are AISI 201SS / 301SS / 304SS.
W5: Band, housing and screw are AISI 316SS.
Bolt & Nut: Carbon Steel, Stainless Steel (if applicable)
Surface: Zinc Coated, Polished, or Natural Stainless Steel
Standard Product Sheet for European-Style Single-Headed High-Strength Hose Clamp
| European-style single-headed high-strength hose clamp | Size/mm | W1 thickness * width | W2/W4 thickness * width | screw |
| 17-19 | 0.6-1.8 | 0.6*1.8 | M5 | |
| 20-22 | ||||
| 23-25 | ||||
| 26-28 | ||||
| 29-31 | 0.8*20 | 0.6*20 | M6 | |
| 32-35 | ||||
| 36-39 | ||||
| 40-43 | ||||
| 44-47 | 1.2*22 | 0.6*22 | ||
| 48-51 | ||||
| 52-55 | ||||
| 56-59 | ||||
| 60-63 | ||||
| 64-67 | ||||
| 68-73 | 1.5*24 | 0.8*24 | M8 | |
| 74-79 | ||||
| 80-85 | ||||
| 86-91 | ||||
| 92-97 | ||||
| 98-103 | ||||
| 101-112 | ||||
| 113-121 | ||||
| 122-130 |
