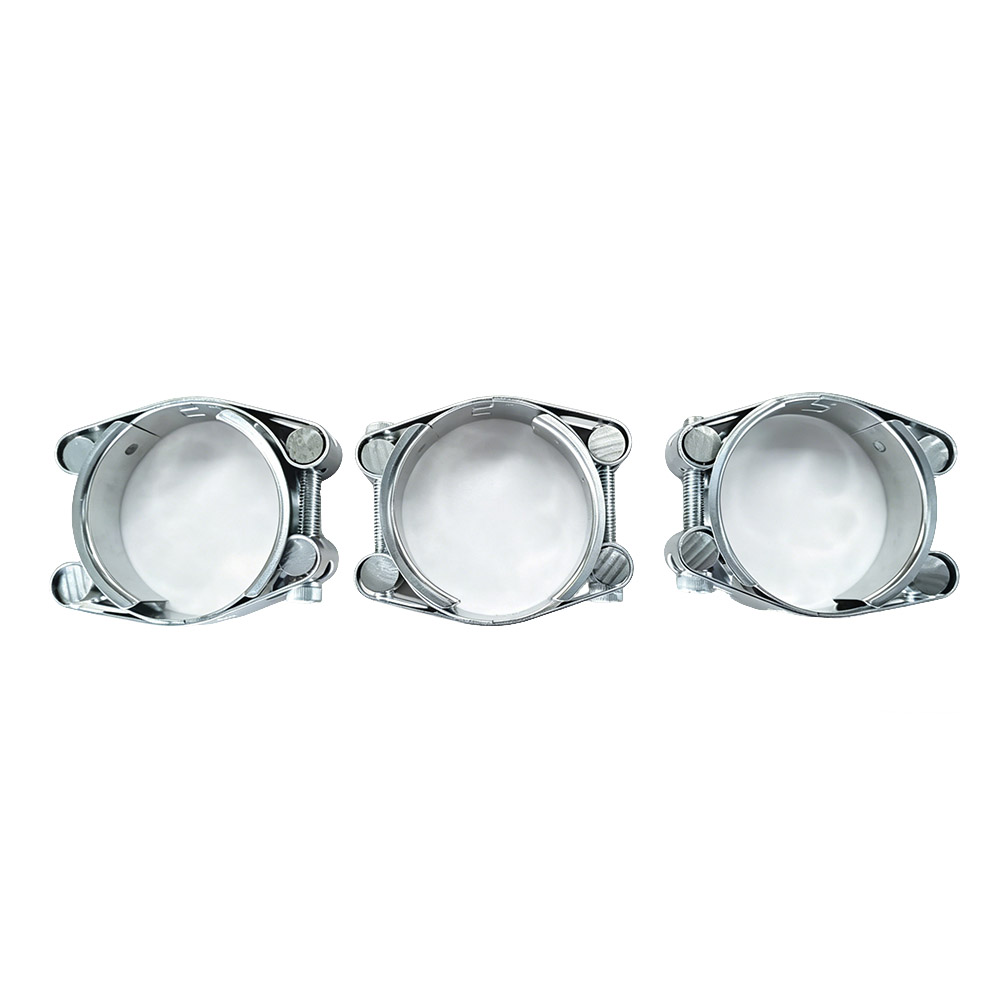

European-Style Double-Headed High-Strength Hose Clamp
This hose clamp is a device used to attach and seal a hose onto a fitting such as a barb or nipple.
Type: European-style double-headed high-strength hose clamp
Band Thickness:1.0mm
Band Width: 20mm
Size: (30-40)mm ~ (120-130)mm
Material:
W1: Band, housing and screw are zinc plated steel.
W2: Housing and screw are carbon steel; band is SS201 / SS301 / SS304 / SS316.
W4: Band, housing and screw are AISI 201SS / 301SS / 304SS.
W5: Band, housing and screw are AISI 316SS.
Galvanized iron material
Bolt & Nut: Carbon Steel, Stainless Steel (if applicable)
Surface: Zinc Coated, Polished, or Natural Stainless Steel
Standard Product Sheet for European-Style Double-Headed High-Strength Hose Clamp
| European-style double-headed high-strength hose clamp | Size/mm | W1 width* thickness |
| 30-40 | 20*1.0 | |
| 35-45 | 20*1.0 | |
| 40-50 | 20*1.0 | |
| 45-55 | 20*1.0 | |
| 50-60 | 20*1.0 | |
| 55-65 | 20*1.0 | |
| 60-70 | 20*1.0 | |
| 65-75 | 20*1.0 | |
| 70-80 | 20*1.0 | |
| 75-85 | 20*1.0 | |
| 80-90 | 20*1.0 | |
| 85-95 | 20*1.0 | |
| 90-100 | 20*1.0 | |
| 95-105 | 20*1.0 | |
| 100-110 | 20*1.0 | |
| 105-115 | 20*1.0 | |
| 110-120 | 20*1.0 | |
| 115-125 | 20*1.0 | |
| 120-130 | 20*1.0 |
