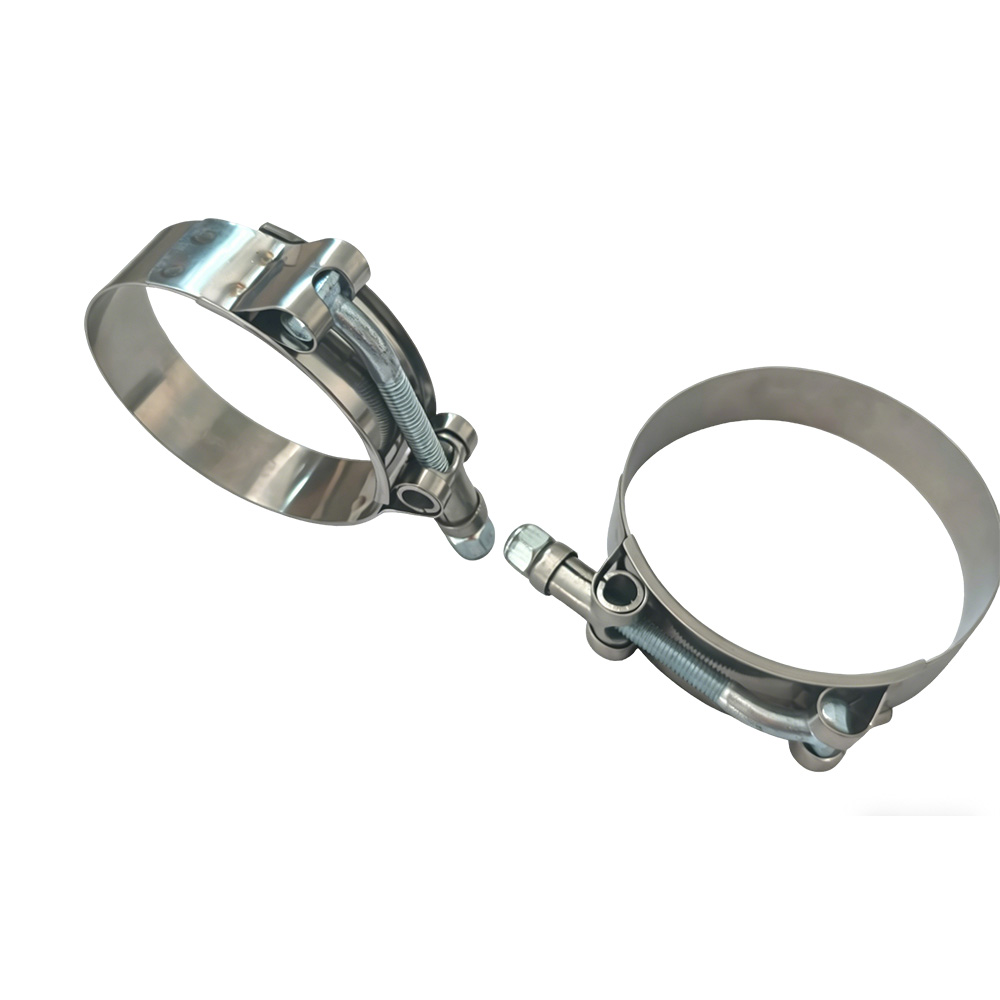

T-Shaped Hose Clamp
This hose clamp is a device used to attach and seal a hose onto a fitting such as a barb or nipple. It features a T-shaped bolt and housing design, providing strong, even clamping force for heavy-duty and high-pressure applications.
Type: T-Shaped Hose Clamp
Band Width: 19mm
Size: 51mm ~ 130mm
Material:
W1: Band, housing and T-bolt are zinc plated carbon steel.
W4: Band, housing and T-bolt are AISI 301SS / 304SS.
W5: Band, housing and T-bolt are AISI 316SS.
Bolt & Nut: Carbon Steel, Stainless Steel (304 or 316)
Surface: Zinc Coated, Yellow, Silver, or Natural Stainless Steel
Standard Product Sheet for T-Shaped Hose Clamp
| T-shaped hose clamp | Size/mm | Band width |
| φ51 | 19mm | |
| φ57 | 19mm | |
| φ63 | 19mm | |
| φ70 | 19mm | |
| φ75 | 19mm | |
| φ80 | 19mm | |
| φ83 | 19mm | |
| φ87 | 19mm | |
| φ92 | 19mm | |
| φ96 | 19mm | |
| φ100 | 19mm | |
| φ105 | 19mm | |
| φ109 | 19mm | |
| φ115 | 19mm | |
| φ123 | 19mm | |
| φ130 | 19mm |
