Fuel & Diesel Suction Hoses vs. Chemical Suction & Discharge Hose: Key Differences You Must Know
Among the many types of industrial hoses, fuel hoses and chemical transfer hoses share a striking resemblance, both offering excellent flexibility and corrosion resistance. At first glance, they may appear to serve the same purpose, but in reality, confusing these two hose types can lead to serious production accidents.
In this article, we will provide a detailed analysis of the key differences between fuel hoses and chemical hoses, including material composition, pressure ratings, and safety standards.
Understanding Fuel & Diesel Suction Hoses and Chemical Suction & Discharge Hose
Fuel and Diesel Suction Hoses:
These hoses are specifically designed for the transfer of fuel, gasoline, diesel, or other petroleum products containing up to 50% aromatic compounds.
Features:
- Features a spiral steel wire reinforcement design capable of withstanding full vacuum pressure.
- Offers excellent resistance to high pressure, oil, abrasion, corrosion, weathering, ozone, aging, sunlight, and cuts.
- Operating temperature range: -20°C to 80°C.
Specifications Table:

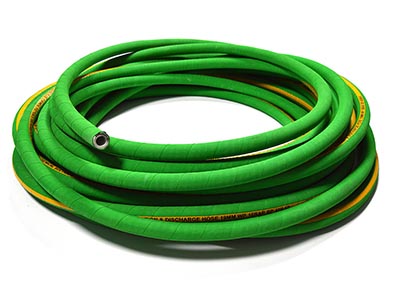

Chemical Suction and Discharge Hoses:
These hoses are designed for the transfer of corrosive chemicals and media, capable of handling various chemicals, corrosive liquids, and solvents.
Features:
- Reinforced with internal spiral steel wire, maintaining excellent performance even under vacuum conditions.
- Offers excellent resistance to acids and alkalis, ozone, and weathering.
- More flexible bending radius.
- Operating temperature range: -40°C to +121°C.
Specifications Table:
Key Differences Between Fuel and Diesel Suction Hoses and Chemical Suction and Discharge Hoses
1. Material Composition (The Inner Tube)
The “tube” (the inside layer of the hose) determines what fluid it can carry.
Fuel Hose Materials:
- Nitrile Rubber (NBR): The industry standard for oil and fuel resistance. It withstands swelling caused by petroleum.
Chemical Hose Materials:
- UHMWPE : A white, slick tube that resists almost 98% of industrial chemicals, including acids and caustics.
- EPDM : Used for specific chemicals like hot water, brake fluids, and some acids, but never for oil or fuel.
- Critical Warning: Never use an EPDM chemical hose for fuel. EPDM will swell, soften, and burst when exposed to petroleum.
2. Reinforcement & Pressure Ratings
Both hoses need to withstand pressure, but the requirements differ.
Fuel Hose: Ranges from low-pressure to high-pressure. The reinforcement is usually synthetic textile braid or, in some cases, a single wire braid.
Chemical Hose: Often requires higher burst strength due to industrial pumping systems. Many chemical hoses feature multiple textile spirals or steel wire helixes to handle suction (preventing collapse) and discharge pressures up to 250 PSI or more.
3. Temperature Tolerance
Fuel Hose: Standard rubber fuel lines operate between –20°C to 80°C.
Chemical Hose: UHMWPE usually handles -40°F to 150°F (-40°C to 121°C)
4. Static Dissipation (Safety)
This is a major difference that is often overlooked.
Fuel Hose: Must be static-dissipative or conductive. As fuel flows, it generates static electricity. If the hose cannot ground that charge, a spark can ignite the fuel vapors, causing an explosion.
Chemical Hose: This depends on the chemical. For non-flammable acids (like sulfuric), static dissipation may not be required. However, for flammable solvents (like toluene or acetone), a conductive chemical hose is mandatory.
5. Typical Applications
Use a Fuel Hose for:
- Automotive fuel lines (cars, trucks, motorcycles).
- Marine engine fuel supply.
- Generator and lawn equipment connections.
- Diesel transfer pumps.
Use a Chemical Hose for:
- Loading and unloading tanker trucks with acids.
- Industrial plant chemical transfer.
- Handling caustic soda (NaOH) or bleach.
- Suction applications where the hose needs to resist crushing.
Parameter Comparison Table
| Fuel and Diesel Suction Hose | Chemical Suction and Discharge Hose | |
| Suitable Media | Gasoline, diesel oil, petroleum products with aromatic hydrocarbon ≤50% | Acids, alkalis, ketones, coatings, esters and various corrosive chemicals |
| Inner Tube | NBR rubber | UHMWPE + EPDM |
| Cover | NBR + CR rubber | EPDM synthetic rubber |
| Reinforcement | High-strength cord + helix steel wire, anti-static copper wire optional | High-strength cord + helix steel wire |
| Temperature Range | -20℃ ~ 80℃ | -40℃ ~ 121℃ |
| Main Properties | Vacuum resistant, oil resistant, wear resistant, anti-aging, anti-static | Chemical resistant, ozone resistant, weather resistant, flexible, vacuum resistant |
| Standard | HG/T2540-93 | — |
| Surface | Smooth | Smooth / corrugated optional |
How to Choose: 4 Questions to Ask
Q1: Can I use a fuel & diesel suction hose for transferring mild chemicals?
A1: No, it is not recommended. Fuel suction hoses are designed with NBR rubber for oil resistance only, and they cannot withstand acids, alkalis, solvents or most corrosive chemicals. Using it for chemical transfer may cause rapid deterioration, leakage or safety hazards.
Q2: Can a chemical suction & discharge hose be used for gasoline or diesel fuel?
A2: In most cases, yes for physical performance, but not ideal. Chemical hoses offer excellent corrosion resistance, but they are not optimized for anti-static performance required in fuel handling. For long-term, safe fuel transfer, a dedicated fuel suction hose with built-in static dissipation is the better choice.
Q3: Which hose should I choose if my application involves both suction and discharge?
A3: Choose a chemical suction & discharge hose. It is engineered to handle both vacuum (suction) and positive pressure (discharge) in one product. Fuel suction hoses are mainly designed for suction service and may not be suitable for high-pressure discharge duties.
Q4: What is the most important factor when choosing between these two hoses?
A4: The transferred medium is the top consideration.
- Select fuel & diesel suction hose if you handle gasoline, diesel or petroleum-based fuels.
- Select chemical suction & discharge hose if you handle acids, alkalis, solvents or other corrosive fluids.
Material compatibility directly determines safety, service life and performance.
