How to Choose the Right Hydraulic Hose Fittings: JIC, NPT, BSP, or DIN?
Selecting the correct hydraulic hose fitting is just as important as choosing the right hose. The wrong fitting leaks, damages threads, or blows off under pressure. With so many standards—JIC, NPT, BSP, and DIN—it’s easy to get confused. This guide breaks down each type and helps you choose the right one—with support from Utigoflex.

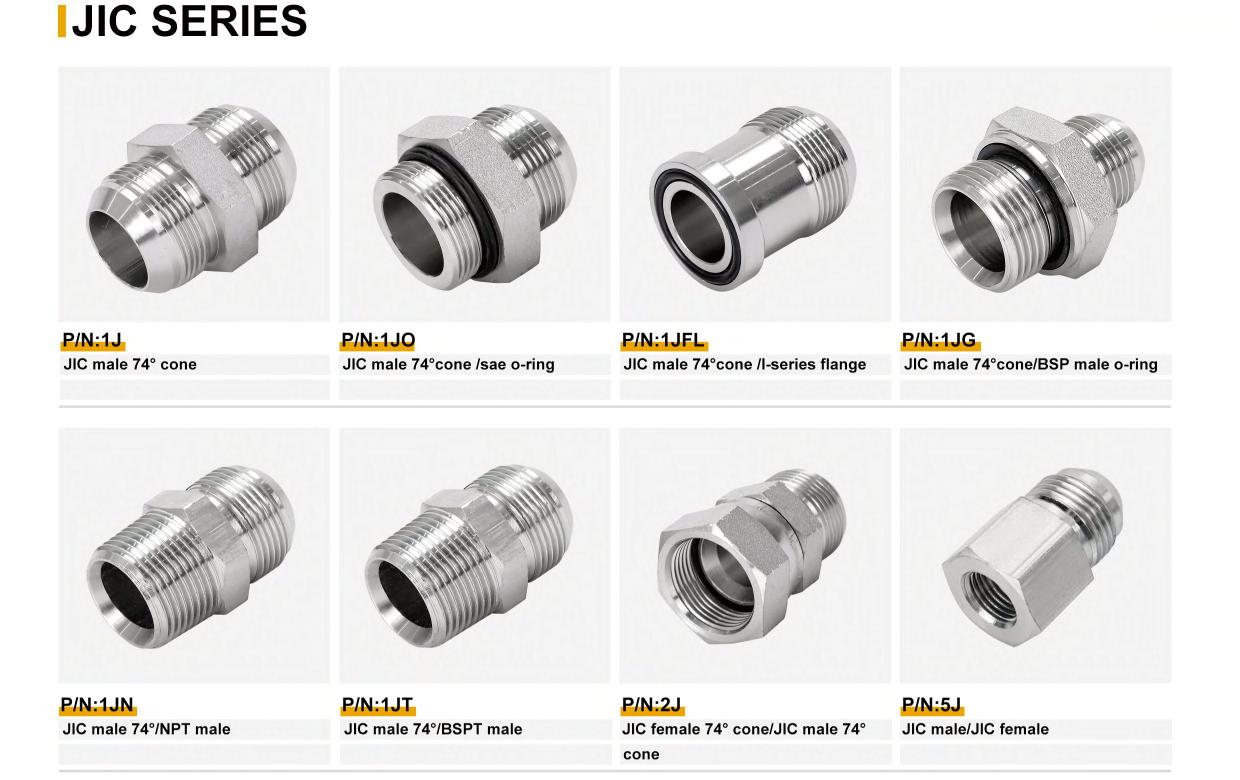

1. JIC (Joint Industry Council) – The 37° Flare Standard
Best for: High-pressure hydraulic systems, mobile equipment, and industrial machinery.
JIC fittings use a 37° flare sealing surface. The seal is made between the flared tube end and the fitting body—not on the threads. This design handles high pressures and vibration well.
Key features:
- 37° flare angle
- Seals on the flare, not the threads
- Common in North America
- Sizes: -04 (1/4″) to -32 (2″)
Utigoflex offering: We supply JIC fittings in carbon steel, stainless steel, and brass.

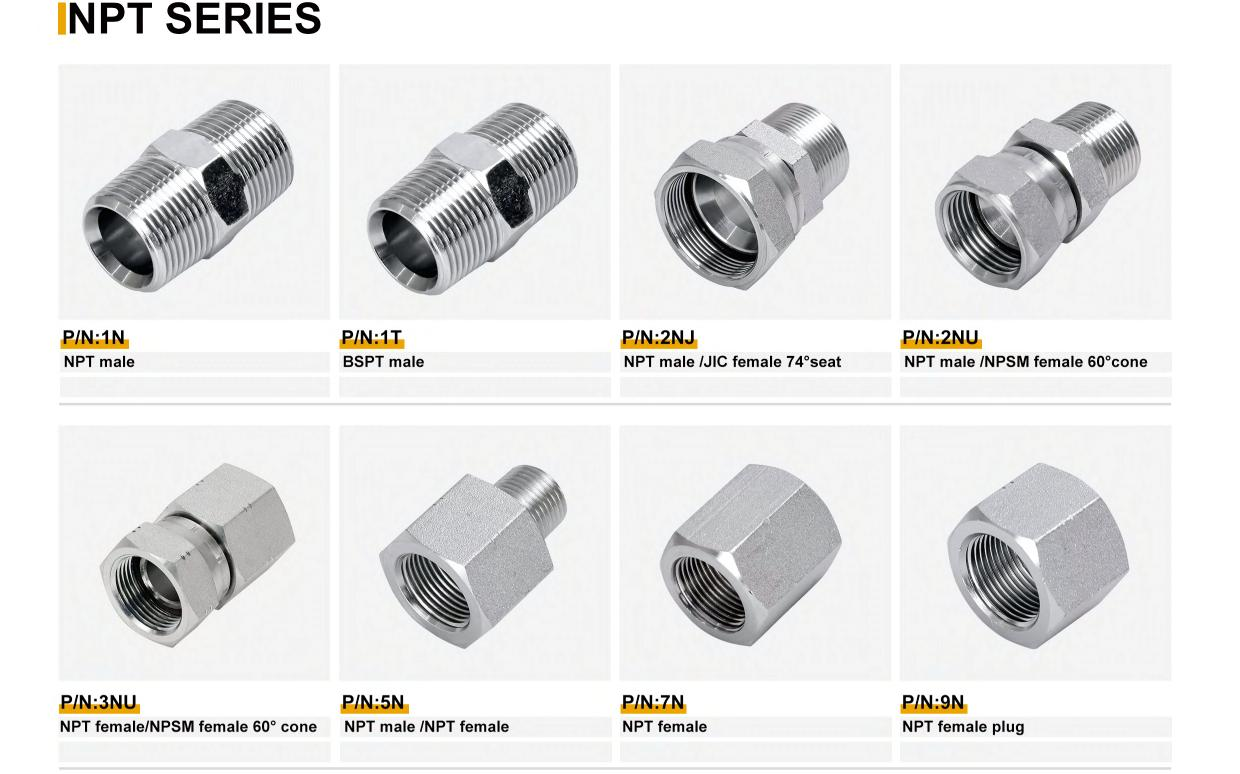

2. NPT (National Pipe Taper) – The Thread-Sealing Standard
Best for: Low to medium-pressure applications, air lines, and general-purpose plumbing.
NPT fittings have tapered threads that seal by wedging the threads together. Thread sealant or PTFE tape is required to prevent leaks.
Key features:
- Tapered threads (1°47′ per side)
- Seals on the threads
- Common in North America
- Sizes: 1/8″ to 4″
Limitations: Can be difficult to seal at high pressures; prone to thread galling.
Utigoflex solution: We offer NPT fittings with anti-seize coatings for reliable sealing.

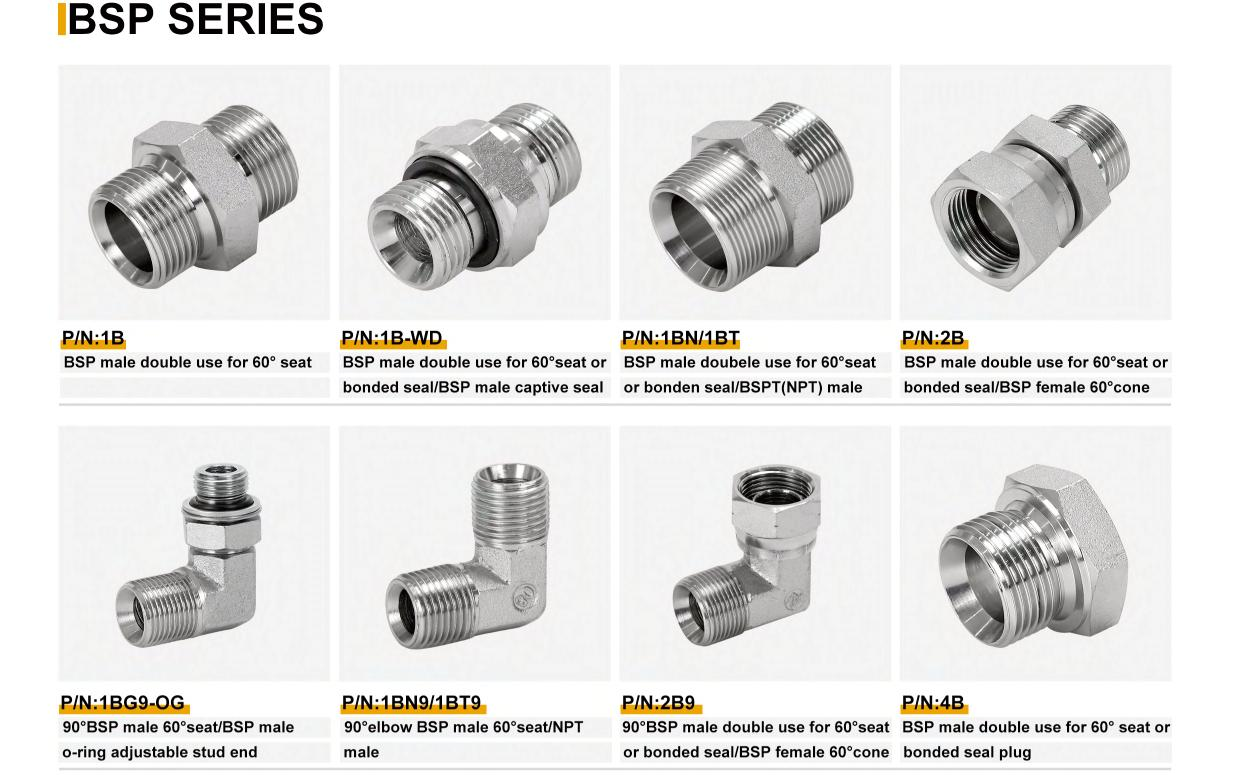

3. BSP (British Standard Pipe) – The Global Standard
Best for: European and Asian markets, water systems, and general industrial applications.
BSP comes in two versions:
BSPP (British Standard Pipe Parallel): Seals with an O-ring or washer (straight threads).
BSPT (British Standard Pipe Tapered): Seals on the threads (similar to NPT but different thread angle—55° vs. 60°).
Key features:
- BSPP: Parallel threads, O-ring seal
- BSPT: Tapered threads, thread sealant required
- 55° thread angle (vs. NPT’s 60°)
- Sizes: 1/8″ to 6″
Utigoflex advantage: We stock both BSPP and BSPT fittings for global compatibility.

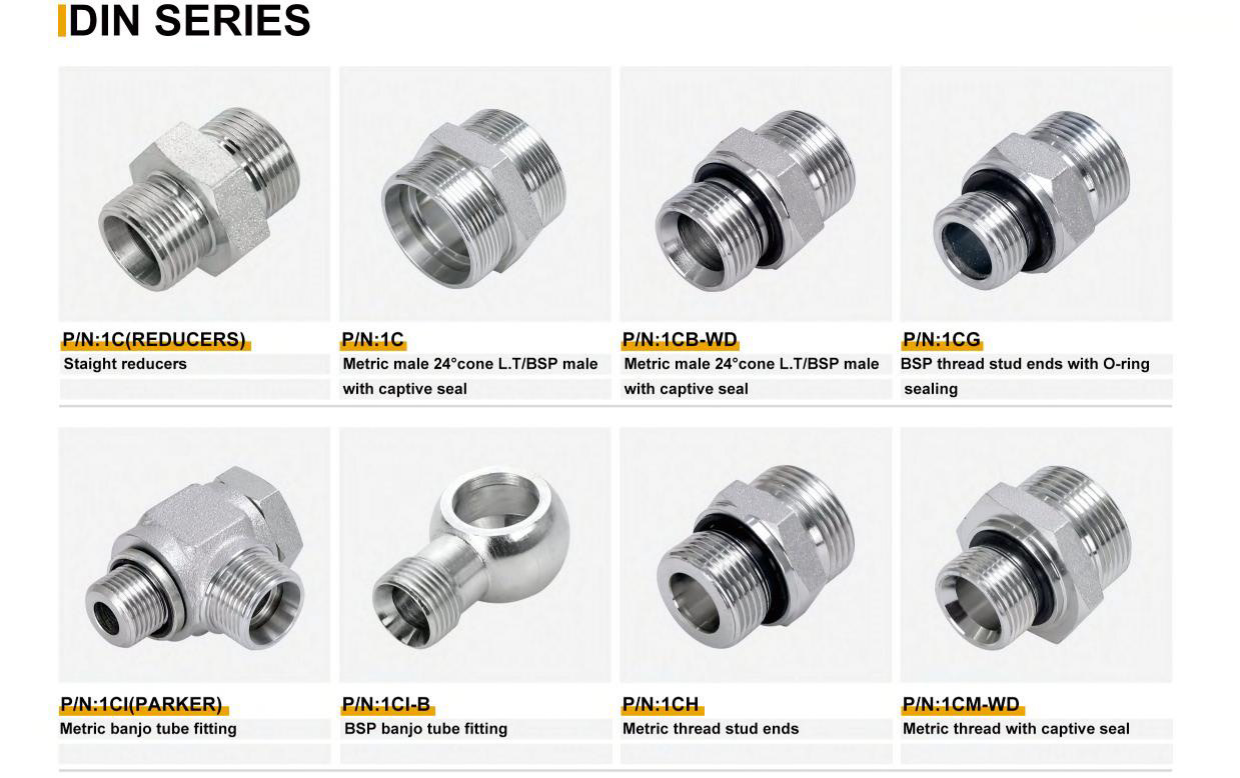

4. DIN (Deutsches Institut für Normung) – The German Standard
Best for: European machinery, German OEM equipment, and heavy-duty hydraulics.
DIN fittings use a 24° cone sealing design (DIN 2353) or a 60° cone (DIN 3861). They handle high pressures and provide excellent vibration resistance.
Key features:
- 24° or 60° cone seal
- Uses an O-ring for leak-proof sealing
- Common in European equipment
- Available in light, medium, and heavy series
Utigoflex offering: We manufacture DIN 2353 fittings in multiple series.
5. How to Choose – Decision Guide
| If your equipment is from… | Choose… |
| North America | JIC or NPT |
| Europe / UK | BSP (BSPP or BSPT) |
| Germany | DIN |
| Asia (mixed) | BSP or JIC |
| High-pressure hydraulic | JIC or DIN |
| Low-pressure / air | NPT |
| Marine / offshore | JIC or BSPP with O-ring |
Always check your equipment ports before ordering. When in doubt, consult Utigoflex.
6. Common Mistakes to Avoid
Mixing NPT and BSP: They look similar but have different thread angles—they cannot be interchanged.
Using sealant on JIC or DIN: These seals are metal-to-metal or O-ring; sealant contaminates the system.
Over-tightening NPT: Can crack the port or strip threads.
Wrong dash size: Always match the fitting size to the hose ID.
Utigoflex support: We provide free thread identification and offer pre-crimped assemblies with the correct fittings for your equipment.
Conclusion
Choosing the right hydraulic hose fitting comes down to three questions: Where was your equipment manufactured? What pressure are you handling? What’s your port thread? JIC excels in high-pressure North American hydraulics. NPT is common for lower-pressure plumbing. BSP is the European and Asian workhorse. DIN is the German premium standard.
