How to Choose High-Temp Ducting Hoses for Ventilation
High-temperature ventilation applications—from engine exhaust and industrial fumes to dryer systems and aerospace testing—demand ducting hoses that can handle extreme heat without failing. Choosing the wrong material leads to premature wear, unstable airflow, and safety hazards. Here is a step-by-step guide to selecting the right high-temp ducting hose, with solutions from Utigoflex.
1. Define Your Temperature Requirements – Continuous vs. Peak
The most critical factor is temperature. You need to know both the continuous operating temperature and any peak or intermittent spikes.

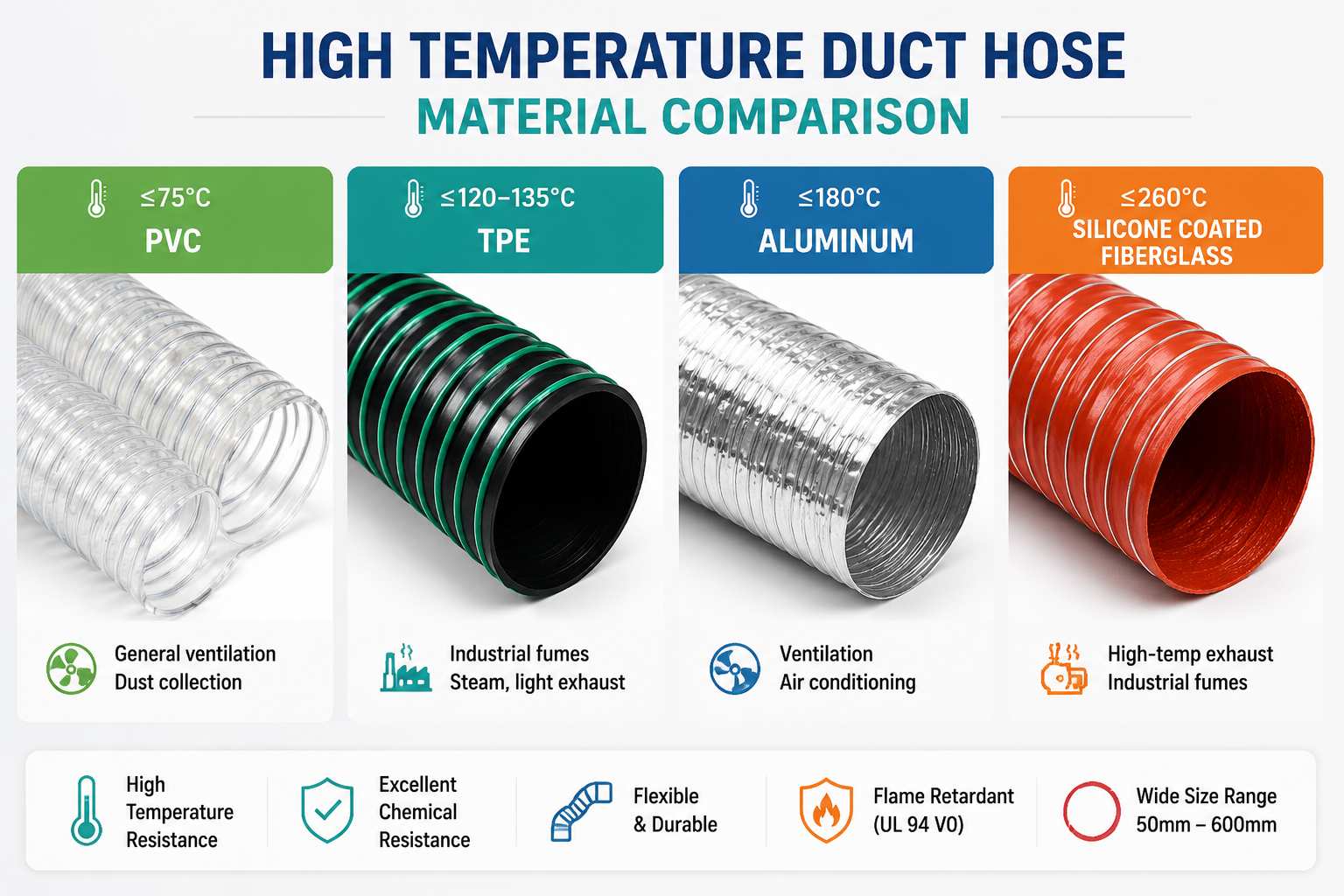

| Temperature Range | Recommended Materials |
| Up to 75°C (180°F) | PVC |
| Up to 120°C (275°F) | Thermoplastic Rubber (TPE) |
| Up to 180°C (400°F) | Aluminum |
| Up to 260°C (500°F) | Silicone-coated fiberglass |
| Up to 400°C (750°F) | Advanced silicone |
Utigoflex solution: Our Clamped High Temperature Duct handles up to 400°C with a silicone-coated glass fiber fabric wall and galvanized steel helix. For slightly lower but still extreme
2.Match Material to Your Application
Different materials offer different balances of heat resistance, flexibility, chemical resistance, and cost.

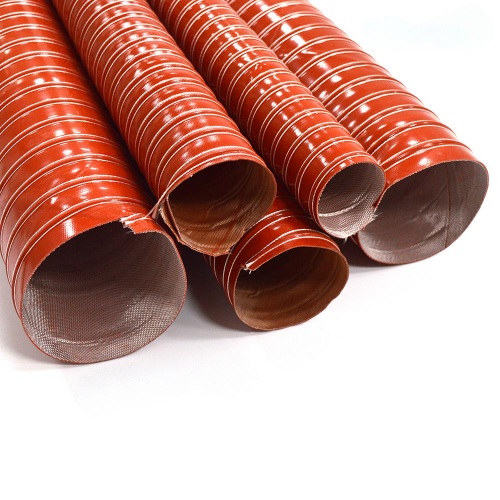

- Silicone-coated fiberglass: The premium choice for high-temperature air, fumes, and exhaust gas. Offers excellent heat resistance, flexibility, and low chemical reactivity.
- TPE (Thermoplastic Elastomer): Good for industrial fumes and steam up to 135°C, with better abrasion resistance than PVC.
- Aluminum: Lightweight and durable for medium-temperature applications up to 180°C.
- PVC: Budget-friendly for lower-temperature ventilation and dust collection.
Utigoflex advantage: We offer multiple material options—from TPE Air Ducts for automotive fumes to silicone-coated fiberglass for extreme environments.
3. Check Bend Radius and Flexibility
High-temp ducts often need to route through tight spaces around engines, ovens, or machinery. A hose with a small bending radius prevents kinking and maintains airflow.

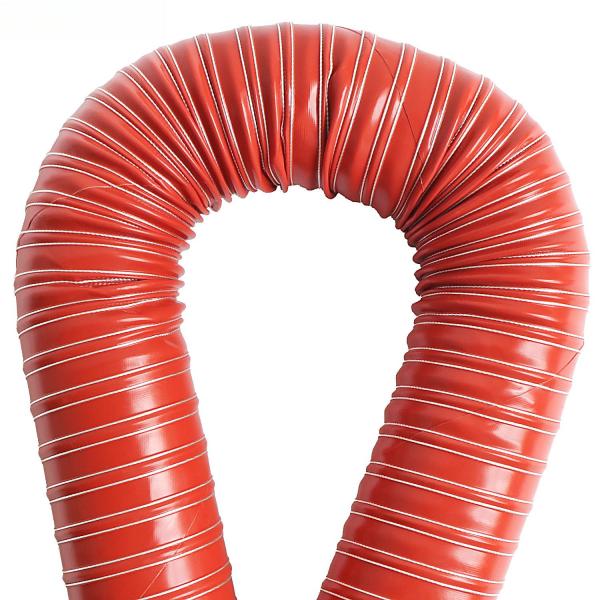

Utigoflex solution: Our clamped high-temperature duct features a small bending radius and is highly flexible and compressible, making installation easy even in confined spaces. The silicone hot air duct hose offers a 180° bend radius without kinking.
4. Consider Pressure and Suction Requirements
Not all ventilation hoses handle pressure equally. Some applications require suction (negative pressure) for fume extraction, while others handle positive pressure for forced air.
Utigoflex advantage: Our ducts offer good performance on working pressure and are suitable for suction of high-temperature air in engine exhaust and industrial fumes.
5. Look for Abrasion and Chemical Resistance
High-temperature environments often involve corrosive fumes, chemicals, or abrasive particles. A duct that resists these will last significantly longer.
Utigoflex advantage: Our silicone-coated fiberglass ducts offer good resistance to chemical substances and feature external steel helix protection against crushing and abrasion.
6. Don’t Forget Safety Certifications
For industrial and commercial use, look for hoses that meet safety and environmental standards.
Utigoflex certification: Our silicone coated glass fiber hot air duct hoses are certified to UL 94 V0 standard, ensuring compliance with rigorous safety and environmental regulations.
7. Select the Right Size
High-temp ducts come in a range of inner diameters, typically from 50mm to 600mm. Larger diameters handle greater airflow but cost more. Custom lengths and colors are often available.
Utigoflex offering: We provide optional inner diameter, thickness, and length in terms of size, plus OEM/ODM services for custom designs.
Conclusion
Choosing the right high-temperature ducting hose comes down to five key factors: temperature (continuous and peak), material compatibility, bend radius, pressure requirements, and chemical/abrasion resistance. Start by defining your maximum operating temperature—that will narrow your material choices immediately. For extreme heat up to 400°C, silicone-coated fiberglass is the go-to solution. For moderate temperatures, TPE or aluminum may suffice.
Build Your Safe Systems with Utigoflex
Utigoflex offers a complete range of high-temperature ducting hoses. Every product features excellent flexibility, chemical resistance, and safety certifications. Whether you need a clamped high-temperature duct for engine exhaust or a silicone hot air hose for industrial ventilation, Utigoflex has the right solution.
[Contact Utigoflex Today] to request a specialized quote or download our complete technical assembly catalog.
