Light vs Heavy Duty Layflat Discharge Hose: How to Choose the Right Option for Your Application?
Layflat discharge hoses are essential for water transfer, irrigation, dewatering, and industrial fluid handling. But not all layflat hoses are created equal. Choosing between light duty and heavy duty can make the difference between reliable performance and premature failure. Here is how to decide—with solutions from Utigoflex.
1. What Is a Light Duty Layflat Discharge Hose?
Light duty layflat hoses are designed for low-pressure, intermittent applications where portability and ease of handling are priorities.
Key characteristics:
- Single-ply or thin-wall PVC construction
- Working pressure: 3–4 bar (45–60 psi)
- Burst pressure: typically 3× working pressure
- Lightweight, flexible, and easy to store
- Lower cost than heavy duty alternatives
Best applications:

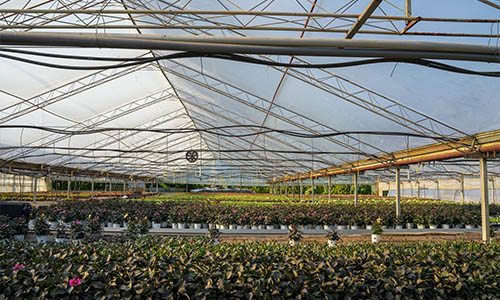

- Gravity-fed irrigation and sprinkler systems
- Garden watering and pond drainage
- Temporary water supply for construction sites
- Light dewatering with small elevation differences
- Spreading liquid fertilizers and agricultural chemicals
Utigoflex offering: Our PVC layflat hoses are extremely flexible, lightweight, and aging resistant—ideal for agricultural irrigation and light industrial use.
2. What Is a Heavy Duty Layflat Discharge Hose?
Heavy duty layflat hoses are built for high-pressure, continuous-duty applications in demanding environments.
Key characteristics:
- Multi-ply polyester weave embedded in high-density PVC or rubber
- Working pressure: 8–10 bar (120–150 psi) or higher
- Thicker walls for abrasion and puncture resistance
- More robust construction for longer service life
- Higher cost but better durability
Best applications:
- Construction site dewatering and water drainage

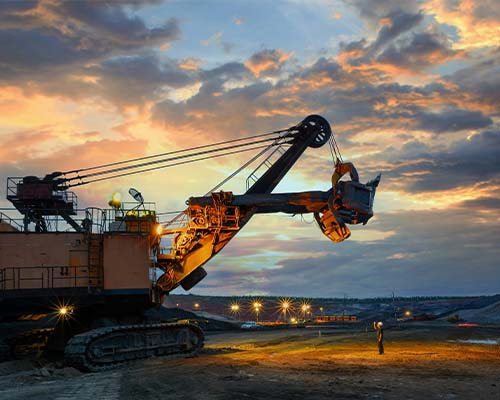

- Open pit mining and quarry operations
- Slurry handling and industrial effluent discharge
- High-volume pump discharge (trash pumps, submersible pumps)
- Demanding agricultural irrigation with high elevation differences
Utigoflex advantage: Our PVC layflat hoses are pressure resistant and abrasion resistant, ideal for mines, civil engineering, and construction dewatering.
3. Key Differences at a Glance
| Feature | Light Duty | Heavy Duty |
| Working pressure | 3–4 bar | 8–10 bar |
| Construction | Single-ply / thin-wall | Multi-ply / thick-wall |
| Weight | Lightweight | Heavier |
| Flexibility | Very flexible | Less flexible |
| Abrasion resistance | Moderate | High |
| Service life | Shorter | Longer |
| Cost | Lower | Higher |
4. How to Choose – A Decision Guide
Choose light duty when:
- Your working pressure is below 4 bar
- The application is intermittent, not continuous
- You need maximum portability and easy storage
- The water source is gravity-fed or low-pressure pump
- Budget is a primary concern
Choose heavy duty when:
- Your working pressure exceeds 4 bar (up to 16 bar or more)
- The hose will be used continuously or daily
- You are dealing with abrasive materials (sand, slurry, debris)
- The application involves significant elevation changes
- You need long service life and fewer replacements
Utigoflex recommendation: For agricultural irrigation and light water discharge, light duty is sufficient. For construction, mining, and high-volume pumping, always choose heavy duty.
5. Don’t Forget These Additional Factors
- Temperature: Standard PVC layflat hoses typically handle -5°C to +65°C. For extreme conditions, consider rubber or specialized compounds.
- UV exposure: If the hose will be stored outdoors, choose UV-resistant options. Utigoflex offers UV-resistant layflat hoses upon request.
- Fittings: Heavy duty applications often require robust aluminum camlock fittings to prevent oxidation and rust.
- Safety factor: Always check the burst pressure—typically 3× working pressure for PVC layflat hoses.
Conclusion
Choosing between light duty and heavy duty layflat discharge hose comes down to three questions: What pressure will you run? How often will you use it? What environment will it face? Light duty hoses are perfect for low-pressure irrigation and temporary water transfer. Heavy duty hoses are essential for construction, mining, and demanding pump discharge work.
Choose the Right Layflat Discharge Hose for Your Application
Utigoflex offers a complete range of PVC layflat discharge hoses—from light duty to heavy duty—with excellent aging resistance, abrasion resistance, and pressure resistance. Available in multiple sizes, colors, and custom lengths. Whether you need a lightweight hose for farm irrigation or a rugged hose for mining dewatering, Utigoflex has the right solution.
[Contact Utigoflex Today] to request a specialized quote or download our complete technical assembly catalog.
